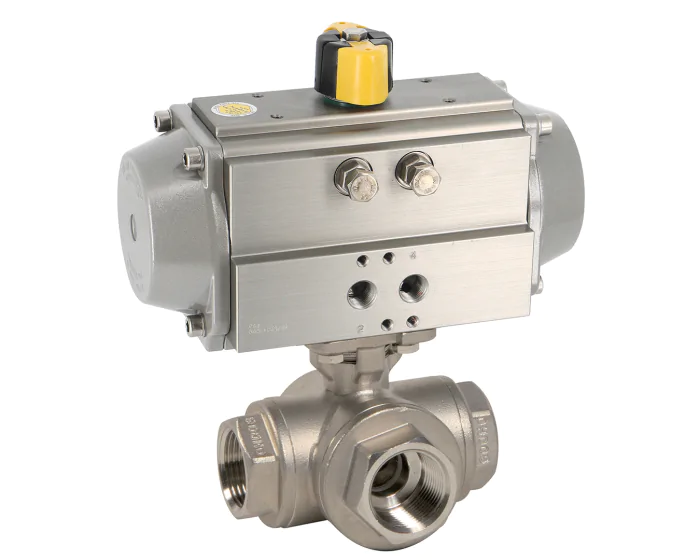

The 780XS-L/781XS-T 3-way stainless steel ball valves with ALPHAIR RE/RES pneumatic actuator offer reliable automation up to DN50. With CF8M body, PTFE seats and ISO direct mounting, they ensure durability under PS 63 bar and TS 180°C. Idea
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Face to Face (mm) | 149.0 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 3 |
| Bore | Reduced |
| Packing gland | PTFE |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| 3-way type | L-port |
| Pneumatic actuator type | Spring return |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Reduced 1/4'' | 275400017004R | S1000324 |
€229.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 1/4'' | 275400017104R | S1000325 |
€252.33
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 3/8'' | 275401017004R | S1000326 |
€231.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 3/8'' | 275401017104R | S1000327 |
€254.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 1/2'' | 275402017004R | S1000328 |
€231.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 1/2'' | 275402017104R | S1000329 |
€254.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 3/4'' | 275403017004R | S1000330 |
€264.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 3/4'' | 275403017107R | S1000331 |
€392.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 1'' | 275404017004R | S1000332 |
€314.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 1'' | 275404017107R | S1000333 |
€403.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 1''1/4 | 275405017007R | S1000334 |
€376.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 1''1/4 | 275405017108R | S1000335 |
€455.23
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 1''1/2 | 275406017007R | S1000336 |
€502.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 1''1/2 | 275406017109R | S1000337 |
€631.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 2'' | 275407017008R | S1000338 |
€637.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced 2'' | 275407017110R | S1000339 |
€797.09
(excl. btw)
|
add to cart |
